The Static Line II ionizer is an antistatic device which emits negative and positive ions, neutralising the electrostatic charging.

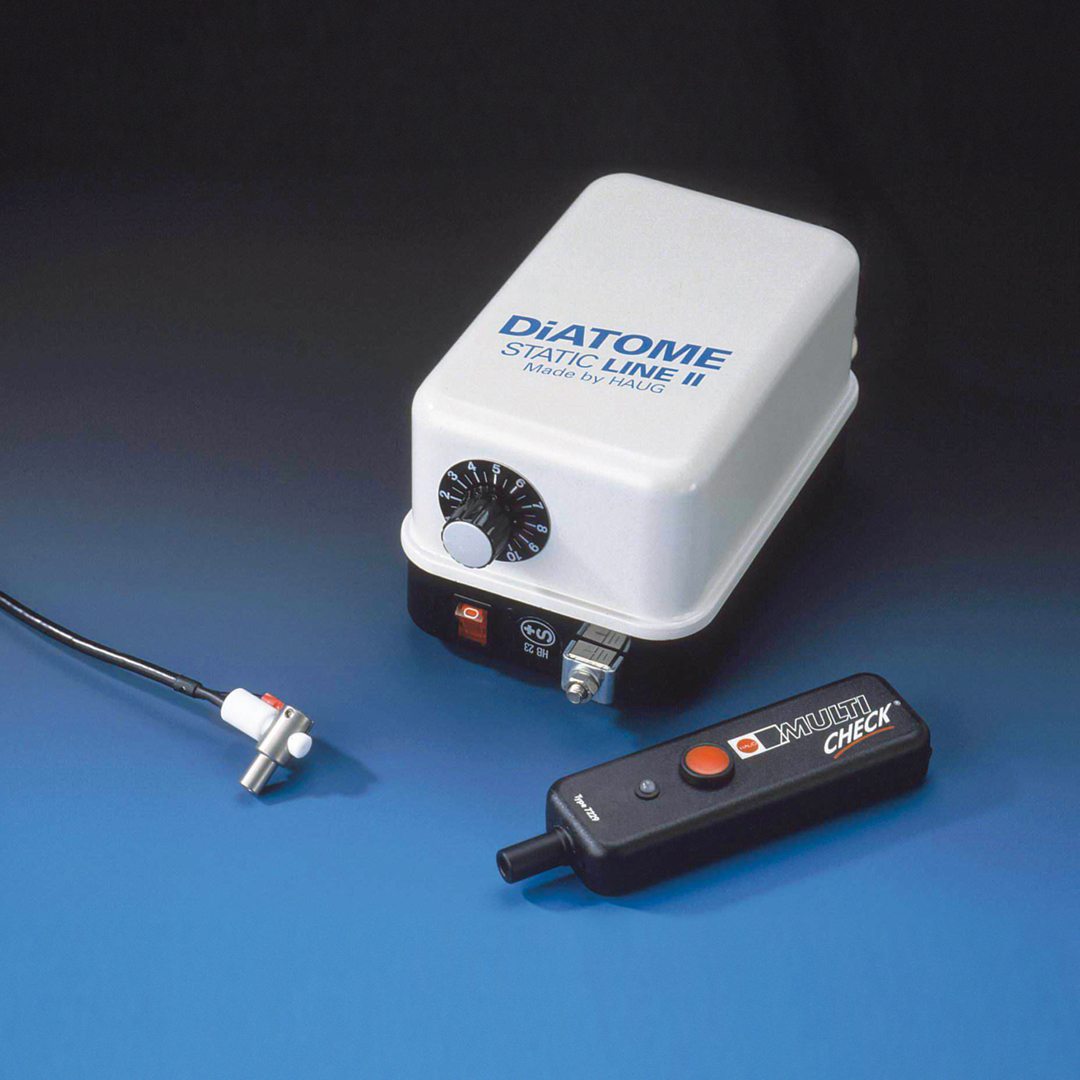

It consists of a high voltage power pack, an ionizer electrode which is connected to the power pack by a cable, and a testing device, the MULTI CHECK.
A dial on the power pack allows for adjustment of the voltage. The correct ion emission can be achieved by turning the variable voltage dial.
Electrode options
Two electrode styles are available. The power pack and MULTI CHECK testing device remain the same in both configurations, with the electrode being the only difference.
Standard electrode: suitable for room temperature applications and compatible with RMC models and select ultramicrotomes.
Leica cryo electrode: designed for cryo applications and compatible with Leica models Leica UC6/FC6, UC7/FC7, Enuity.
Technical data
| Voltage: |
230 V, 115 V |
| Nominal frequency: |
50-60Hz |
| Nominal output voltage: |
approx. 7-8 kV variable |
| Power consumption: |
approx. 50 VA |
| Short circuit output current: |
max. 3 mA |
| Dimensions: |
Length 173 mm
Width 113 mm
Height 110 mm |
| Weight: approx. |
3.5 kg |
We reserve the right to make technical changes.
For replacement parts to the Static Line II Ionizer, please see:
