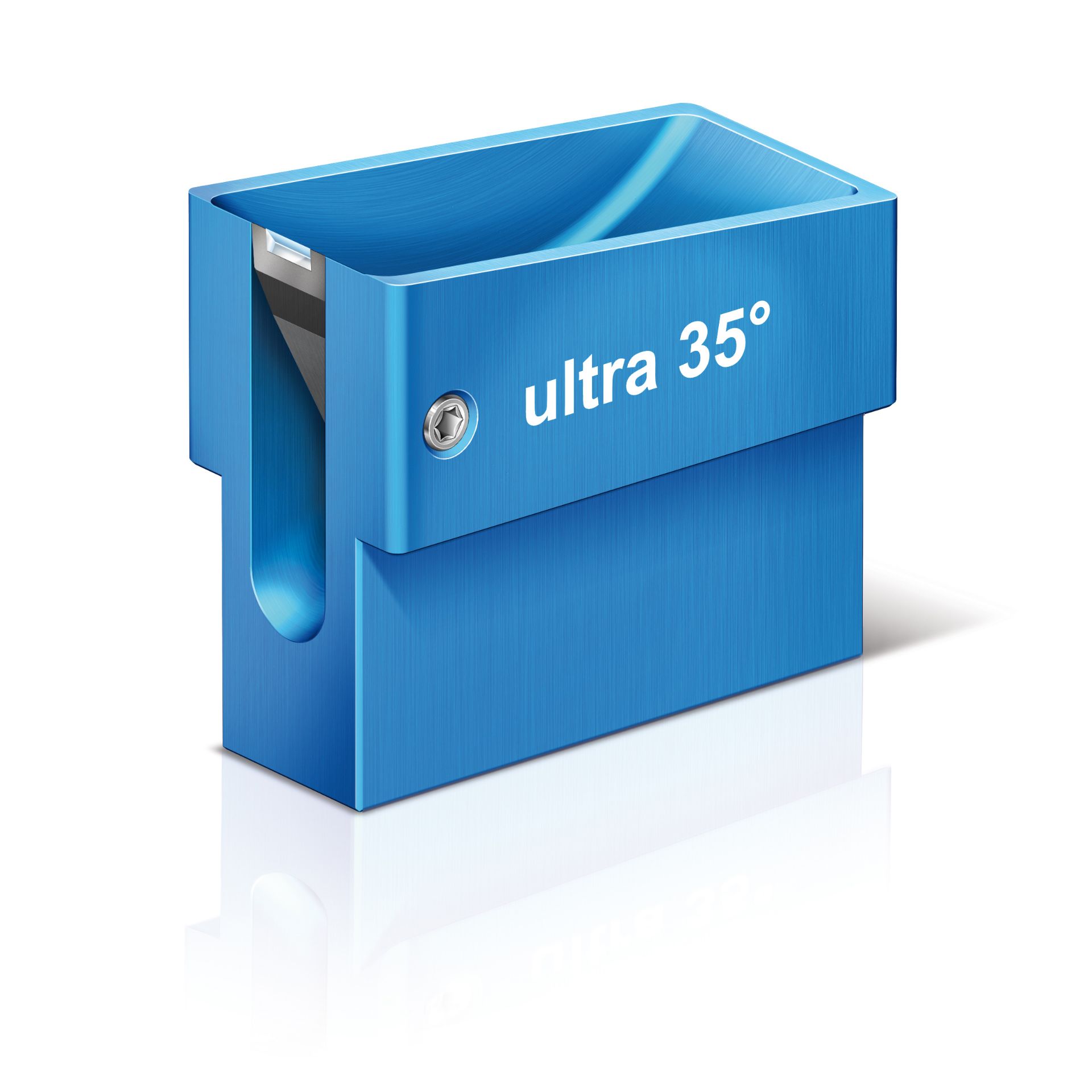

ultra 35°

The low angle diamond knife for reduced compression and better structure preservation.
*
*
*
Knife type Knife angle Size
[mm]
Thickness
range [nm]
Boat type Code
(new knife)*
Application
ultra 35° 35° 1.5mm
2.0mm
2.5mm
3.0mm
3.5mm
4.0mm
30–200 Standard Boat 15-UL
20-UL
25-UL
30-UL
35-UL
40-UL
  • Soft industrial samples such as metals and polymers
  • Hard and brittle samples such as semiconductors, superconducting oxides, nanocrystalline ceramics

In 1989 considerably reduced compression, smoother section surfaces and improved structural preservation thanks to the use of our ultra 35° knives was demonstrated (J. C. Jésior, Scanning Microscopy Supplement 3, pp. 17 – 153, 1998).

In the meantime, a large number of researchers have recognized the ad- vantages of 35° knives, in particular for sectioning biological specimens of all kind, non-homogenous specimens, non decalcified bone, dental material, etc.

The ultra 35° knives are perfect for sec- tioning relatively soft materials research specimens including metals and poly- mers, as well as mixed specimens such as polymers fi lled with nanoparticles, brittle materials such as catalysts, crystals, semiconductors, etc (G. Mahon et al., Microscopy Research and Technique, Vol. 31, pp. 267 – 274, 1995, S. R. Glanvill, Microscopy Research and Technique, Vol. 31, pp. 275 – 284, 1995, P. Swab et al., Mat. Res. Soc. Symp. Proc. Vol. 115, pp. 229 – 234, 1989, P. Schubert-Bischoff et al., Microscopy and Microanalysis, proceedings, page 359, 1997).

The ultra 35° knife has demonstrated it’s usfulness as a standard knife for the majority of applications in both biological and materials research.
